Electric Motor Analyzer

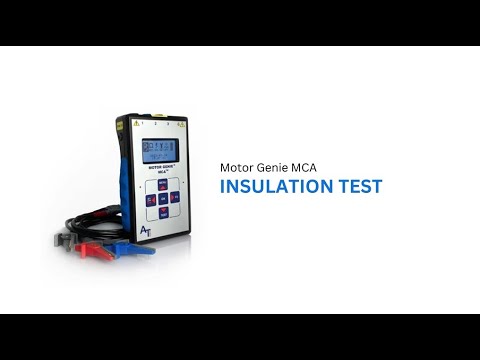

Motor Genie MCA™
Deenergized Motor Circuit Analysis™ (MCA) Testing Instrument
$4,250.00 USD
The Motor Genie MCA™ is a handheld electric motor analyzer that uses patented technology to troubleshoot low-voltage AC induction motors (<1000V).
Features
- Handheld & Lightweight (under 1lb)
- On-screen step-by-step testing instructions
- Tests take less than 3 minutes
- See status on Rotor, Stator, Resistance, Insulation & more
- Real-time Impedance, Phase Angle and Current Frequency readings per phase
- 4-Wire Kelvin Bridge for Absolute Accuracy
- Reporting Via Free Motor Genie App (iOS & Android)
Videos
Downloads
Capabilities
The MOTOR GENIE® MCA is a handheld electric motor analyzer that uses patented technology to troubleshoot low-voltage AC induction motors (< 1000V).
The MOTOR GENIE® MCA helps find:
- Winding Faults
- Ground Faults
- Open Connection Issues
- Contamination Issues
See real-time diagnostic data on:
- Rotor
- Stator
- Insulation
- and more…
Issue | Meg-ohm Meter | Volt/Ohm Meter | Motor Genie |
Ground Faults |
|
|
|
Internal Winding Faults* |
|
|
|
Open Connection |
|
|
|
Contamination |
|
|
|
*Winding coil faults: Turn-to-turn & coil-to-coil | |||
Much More Than Your Grandpa’s Megohmmeter
With its advanced capabilities, the MOTOR GENIE® MCA™ outperforms other traditional tools such as the Megohmmeter, RCL meter and other resistance meters.
In addition, the MOTOR GENIE® MCA™ includes the most diagnostic functions for a lower price than other electric motor analyzers.
“It’s the best megohmmeter I’ve ever used.”
– Daniel Braden, Braden Electrical Systems
Download theMotor Genie App
Available to download for free to your mobile phone for Android® and Apple®, the Motor Genie App helps user’s easily compute analysis results to diagnose a motor’s condition.
